Introduction
Unconventional reservoir productivity is governed by a complex interaction of geomechanical, geological, and operational factors. Among these, the orientation of horizontal wells relative to the in-situ stress field plays a decisive role in controlling hydraulic fracture propagation, fracture conductivity, and ultimately hydrocarbon recovery. Modern shale developments increasingly rely on stress characterization to optimize well trajectories and stimulation design.
The study titled “Impact of Relative Stress Magnitudes and Well Orientation on Well Productivity Across Major U.S. Shale Plays: A Regional Data Analysis Study” evaluates this relationship using a large-scale, data-driven approach integrating geomechanical stress mapping with production performance across North America’s major unconventional basins.
Leveraging more than 128,000 horizontal wells, the work provides one of the most comprehensive basin-scale validations of how stress anisotropy and faulting regimes influence well productivity trends.
Geomechanical Framework
Stress Orientation and Faulting Regimes
The analysis builds upon the regional stress model developed by Lund Snee and Zoback (2022), which mapped North America’s present-day stress state using thousands of stress indicators derived from:
-
Borehole breakouts
-
Drilling-induced fractures
-
Image logs
-
Leak-off tests
-
Mini-frac data
-
Focal mechanisms
These datasets enabled the determination of:
-
Maximum horizontal stress (SHmax)
-
Minimum horizontal stress (Shmin)
-
Vertical stress (Sv)
-
Faulting regime (normal, strike-slip, reverse)
The continental stress map (see figure on p.3) illustrates coherent SHmax orientations across basins, with localized rotations near structural boundaries and mechanical contrasts.

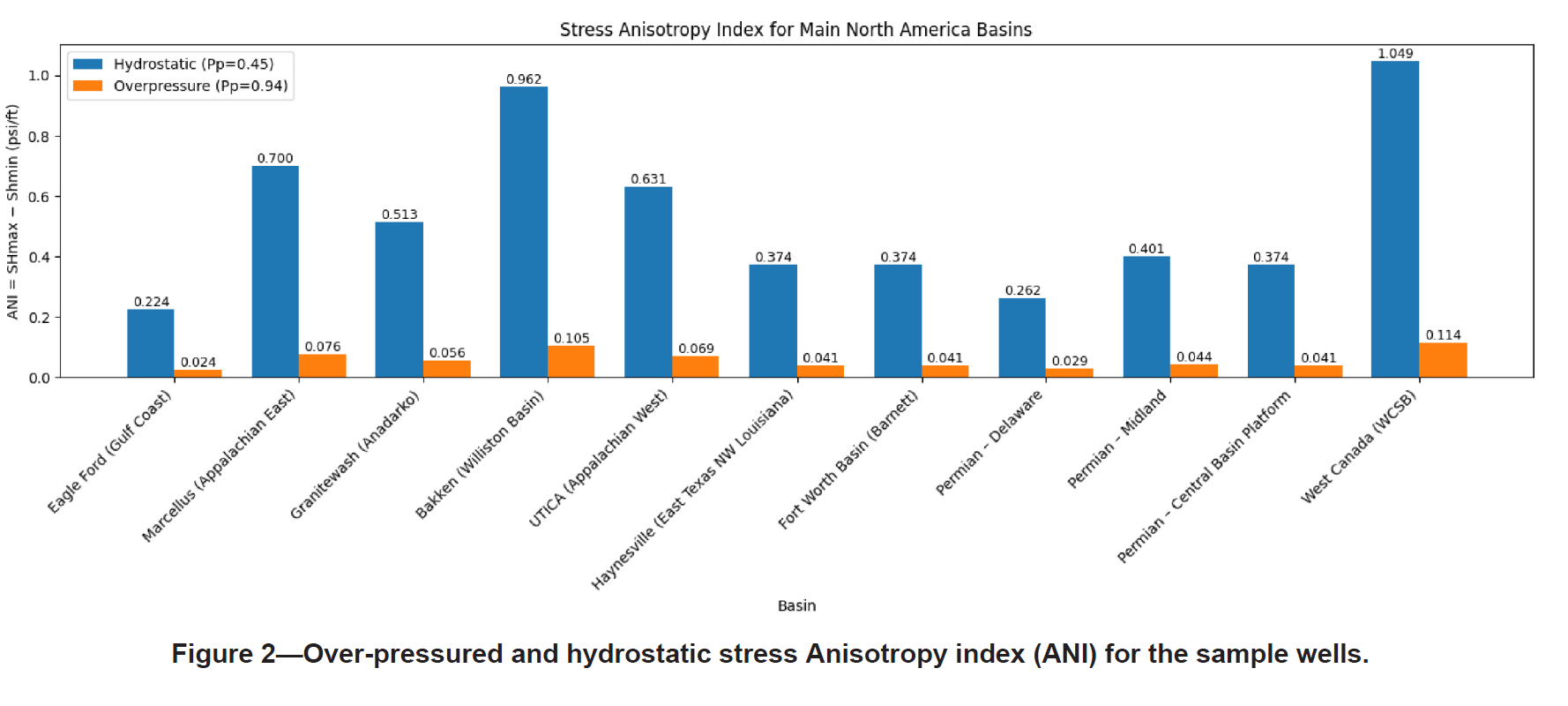

Stress Anisotropy Index (ANI)

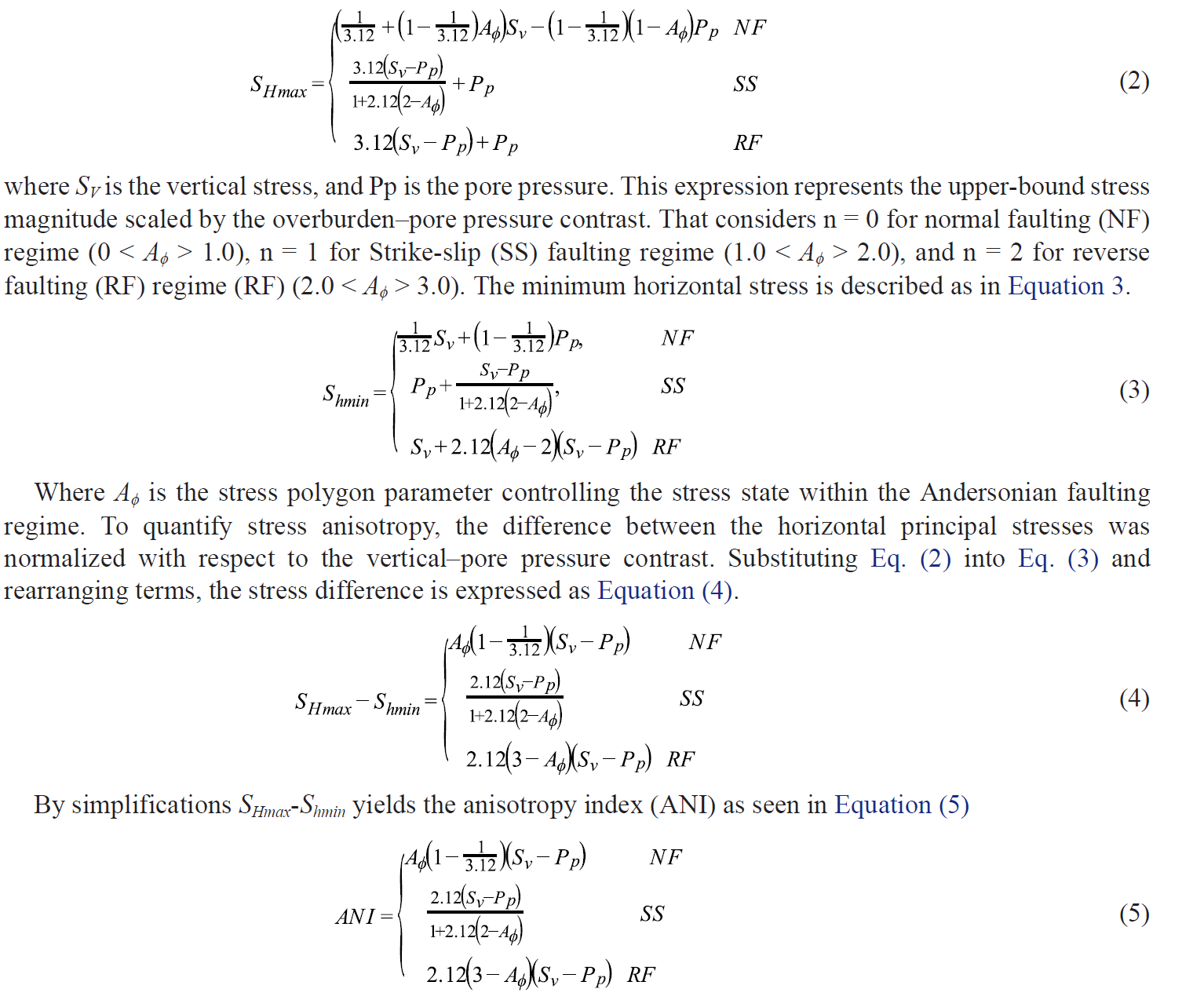

To quantify differential stress intensity, the study formulated the Stress Anisotropy Index (ANI), derived from the difference between SHmax and Shmin normalized by the vertical–pore pressure contrast.
Key controlling parameters include:
-
Vertical stress gradient (~1.0–1.1 psi/ft)
-
Pore pressure gradient (0.45–0.94 psi/ft)
-
Faulting parameter (Aφ)
ANI serves as a predictive indicator of fracture directionality and well orientation sensitivity.
Methodology
Dataset Construction
The productivity analysis incorporated wells from major unconventional plays, including:
-
Permian Basin
-
Bakken
-
Eagle Ford
-
Marcellus
-
Utica
-
Barnett
-
Haynesville
-
Granite Wash
-
Western Canada
Well orientation was calculated from directional surveys, and stress orientation was obtained from the World Stress Map database.
Productivity Normalization
To ensure fair basin comparisons, productivity was normalized using:
-
36-month cumulative production
-
Lateral length scaling
-
Proppant intensity normalization
Wells were grouped into 90 bins based on proppant loading and lateral length to maintain statistical rigor.
The angular deviation parameter (θ) measured the angle between well azimuth and Shmin.
Basin-Scale Results
This large-scale integration of geomechanics and production analytics advances unconventional reservoir engineering from empirical design toward physics-informed optimization.
By quantifying how stress anisotropy, pore pressure, and tectonic regime interact, the study establishes a predictive framework for maximizing productivity across diverse shale systems.
